As specialists in power electronics with a great deal of practical experience, we know the maximum power and security requirements that you place on your electronic devices. That is why our powerful high-current connectors, high-current terminals and high-current feedthrough terminals for PCB also comply with relevant device standards, such as IEC 61800 for speed-controlled drive technology. PCB terminals with PUSH IN wire connection and application-specific connectors for motor connection with shield support complete the range.
The pluggable connections for power electronics - optimised for modern drive technologies, e.g. motor starters, frequency converters and servo-controllers.
The simple plug-and-play solution is ideal for the fast, tool-free replacement of individual modules from a network of multi-axis servo drives.
The system guarantees a secure, absolutely finger-safe latching of the busbar connectors. The tolerance compensation of the rail system facilitates the secure fastening of the entire axle system.
The use of already registered UL components promotes approval. Besides, development becomes superflous, the project lead time shortens, and unnecessary investments decline significantly.
Connecting the power supplies of devices requires a simple connection. This trend is particularly evident when it comes to energy recovery by means of DC link for drives.
The PUSH IN technology shortens wiring times. Simply insert the conductor into the clamping point of the connector - without any tools. To disconnect the conductors, the actuators in the middle of the high-current connector are easily accessible.
BVDF power connector with two connections per pole is plug-compatible with the pin headers of the SV-series and thus enables the flexible selection of connectors for devices. Single devices can be connected to the BVF as a single-row standard connector.
Thanks to the self-locking middle flange or side locking flange of the BVDF power connector, both with additional screw fixing, for a secure fit with tight bending radius of the connected wires.
The sturdy, direct connection for extreme current and voltage requirements in all power electronics applications.

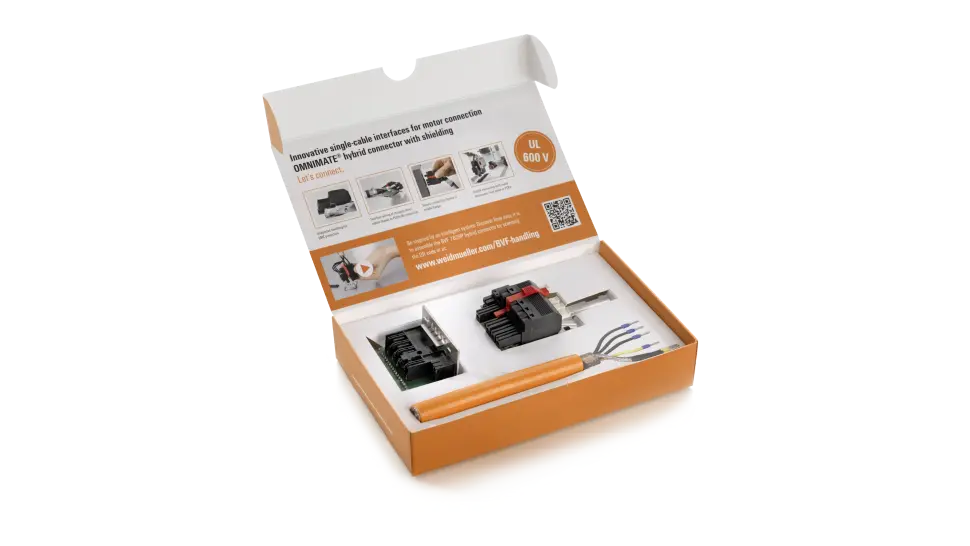

With PCB and device designs, there always comes a point at which design engineers need to find exactly the right connection for their application. Order your design-in samples, quickly and easily:
Opening the clamping point of the high-current terminal for the PCB is possible with little effort and without special tools. It can be done by hand or using a simple screwdriver.
Easily accessible diagnostic testing points for necessary maintenance and measurements in direction of cable entry or on the actuating lever side allows the using of tester or connector PS2.
The clamping point of the high-current terminal is automatically closed again after each opening. This intelligent “Connection Safety Concept” helps ensure that the wire is always safely connected.
The PUSH IN connection system allows a toolfree wire connection to the PCB board. Solid wires or wires with ferrules can be directly plugged.
Feedthrough terminals are the universal solution for routing currents through enclosure walls. Excellent for applications such as EMC filters, discrete-built inverters for drive systems and encapsulated devices.
The disc design of the feedthrough terminals with a disc width of only 5.1 mm allows for quick, easy and space-saving assembly of high-pole terminal blocks for various and flexible application possibilities.
Reduced assembly costs and easy handling thanks to the intuitive latching of the feedthrough terminals, which fixes terminal blocks in the housing cut-out within seconds.
The PUSH IN connection system allows to connect conductors quickly and offers a large connection cross-section. Conductor connections with a cross-section of up to 4.0 mm² with ferrules are possible.
WGK series feedthrough terminals consist of an inside and outside component that are easily locked with one another through the housing wall without any tools for an easy handling.
This is a YouTube video. By clicking on this video, you agree to Google/YouTube's Privacy Policy & Terms of Use . You also agree to our Privacy Policy.
A QR code on the product and the packaging leads directly to the corresponding handling video at YouTube. In this Tutorials, individual installation steps can be traced directly during processing.
Weidmüller provides you with handling videos for various OMNIMATE® products in the YouTube Channel.
With our OMNIMATE® services, we can help you and your business achieve the highest possible levels of efficiency. You can reduce your product costs and benefit from our support across all phases of your project. Save valuable time with an application or product-oriented search using our ConnectorGuide and make a quick selection with our web configuration tool.
Feel free to contact our experts for more information on our PCB connectors or if anything is unclear. Simply use the services of our support centre. We’ll help you identify the ideal solution for your needs. Are you unsure about how to properly mount our PCB connectors and PCB terminals? If so, as well as contacting our customer support team, you can also watch one of our handling videos . You can find these in our online product catalogue or by scanning the QR code on the product itself.
Whether you come to us as a device developer, product manager or buyer, we promise you efficiency, speed and tailored solutions. Weidmüller is your perfect partner for PCB connectors and PCB terminals. You can rely on our expertise and know-how. Working with you, we’ll find the products that meet your requirements.
We provide you with information on our OMNIMATE® Power components for power electronics for download. Download our quick reference guide or our product catalogue to find exactly the feedthrough terminals, high current PCB connectors and high current PCB terminals you need.
